Vertical Automatic Ring Bending machine for SWG inner and outer ring SMT-PX1000D-2

close window Click to close window
Vertical Automatic Ring Bending machine for SWG inner and outer ring » SMT-PX1000D-2

Pictures available of Vertical Automatic Ring Bending machine for SWG inner and outer ring:

SMT-PX1000D-2

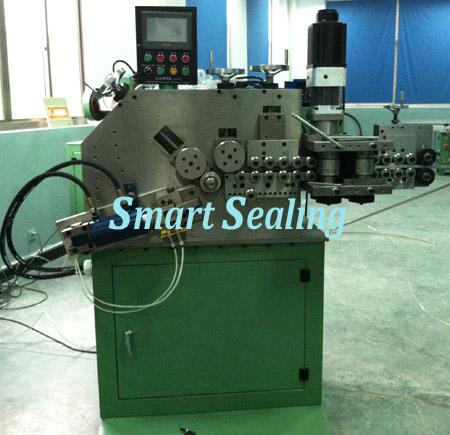

Vertical Automatic Ring Bending machine for SWG inner and outer ring

Bending Ring width:6mm--20mm, ring size:120-1000mm;
PLC touch screen setting length control, Automatic cutting.

Enquiry Now

Vertical Automatic Ring Bending machine for SWG inner and outer ring Details

Specification as following:
STYLE	Automatic Ring Bending Machine for SWG IR and OR
STYLE	PX2000D-2 HORIZONTAL	PX1000D-2 VERTICAL
Bending Ring thickness	2mm, 3mm, 4mm	2mm, 3mm, 4mm
Bending Ring width	6mm--60mm	6mm--20mm
Maximum ring OD	3000mm	1000mm
Minimum ring ID	200mm	120mm
Total power	6kw	6kw
Servo motor power	3kw	3kw
Main motor power	2.2kw	2.2kw
Power supply voltage	380V/220V, 3phases, for option	380V/220V, 3phases, for option
linear speed	0-200mm/s	0-200mm/s
PLC	xinjie	xinjie
Production rate	5s/pc for ASME8"150LB	2.5s/pc for ASME8"150LB
Machine measurement	150013001580mm	148013001600mm
Machine net weight	800kg	750kg
