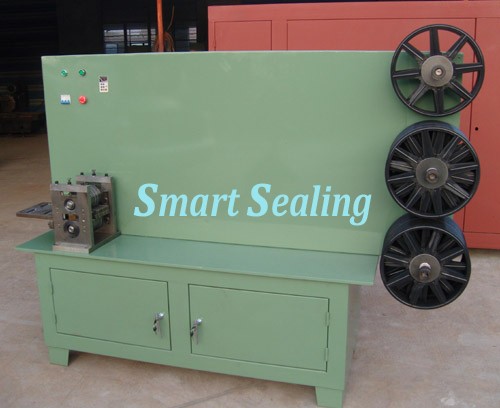

SS hoop slitting machine

SMT-5210 Slitting machine is used to slit spiral wound gasket hoop (Stainless steel strip) in flat shape. The widest SS before slitting is 120mm, thickness 0.1-0.3mm, slitting size 3.6 4.8 5.0 8.0 10.0MM width for option.
One machine can produce more than 1000kgs of strip per day.

Enquiry Now

SS hoop slitting machine Details

One machine can produce more than 1000kgs of strip per day.

Specification as following:
STYLE	SMT-5210 Slitting machine for SWG HOOP (ss strip)
Slitting SS thickness	0.1--0.3mm
SS width before Slitting	≤120mm
SS strip width	3.6 4.8 5.0 8.0 10.0MM width for option. Standard machine package include 50pcs of plastic spool for ss strip after slitting, and one set (one size) of special design blades.
Total power	2.2kw
Spindle motor power	1.5kw
Transducer	4.0G
Power supply	380V/220V as request
linear speed	0-0.4cm/s
Machine measurement	20508001550mm
Machine net weight	500kg
