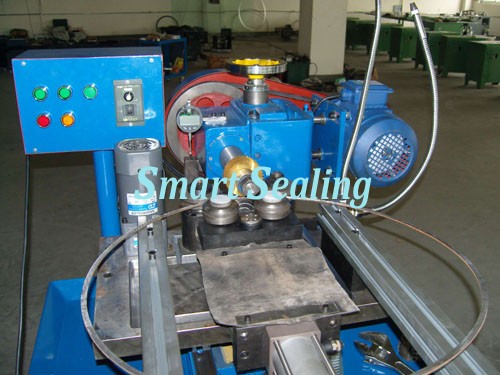

Kammprofile gasket machine

SMT-5213 style is used to make Kammprofile gasket in a very fast and convenient way.
Kammprofile pitch both 1.0 and 1.5mm available. HSS saw blades and Alloy blade in set for option.

Enquiry Now

Kammprofile gasket machine Details

SMT-5213 style is used to make Kammprofile gasket in a very fast and convenient way.
Kammprofile pitch both 1.0 and 1.5mm available.

HSS saw blades and Alloy blade in set for option.

Specification as following:
STYLE	SMT-5213 Kammprofile gasket machine
Gasket thickness	3 -- 4mm
Gasket width	10--50mm
Maximum gasket OD	4000mm
Minimum gasket ID	280mm
type of tooth	1.5mm or 1.0mm pitch tooth, or wave tooth
Total power	4kw
Spindle motor power	1.5kw
Spindle speed	0--1200 rpm
Feed motor power	0.4kw
Feed linear speed	0--20mm/s
Frequency Converter	2.2G 0.4G
Power supply voltage	380V/220V, 3phases, for option
Air compressor	0.6—0.8 MPA
Machine measurement	80010001360mm
Machine net weight	500kg
