Automatic winding machine for spirial wound gasket

This is our new design style automatic winding machine for SWG. Producing range diameter 25-500mm.
Both Manual and Automatic mode.
Can use both pre-formed SS strip in pancake or 20-25kgs spool of flat strip. Standard package including models for 1"-10" 150# SWG with or without inner ring.

Enquiry Now

Automatic winding machine for spirial wound gasket Details

SMT-PX-300C

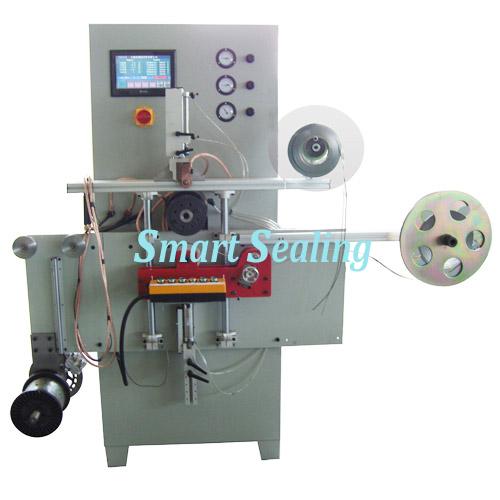

This is our new design style automatic winding machine for SWG.

Specificaton as following:

STYLE	SMT-PX-300C Winding machine (for SWG)
Working mode	Both Manual and Automatic mode
SS strip	Can use both pre-formed SS strip in pancake or 20-25kgs spool of flat strip
Producing ability	Standard package including models for 1"-10" 150# SWG with or without inner ring
SWG thickness	4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD	500mm
Minimum gasket ID	25mm
Gasket OD tolerance	±0.2mm
Main motor rotation speed	0--312.5rpm
Total power	8kw
Spindle motor power	1.5kw
Welder power	6kw
Power supply	220V,380V, 3 phases, for option
AIR COMPRESSER	0.6-0.8 MPA
PLC	xinjie
Time for producing one SWG	20--30s (for ANSI 6" 150LB)
Machine measurement	180011001900mm
Machine net weight	600kg

SMT-PX500CNewest Model Automatic spiral wound gasket Winding machine
SMT-PX500C Automatic spiral wound gasket winding machine is our newest design, it has the best automatic function all over China.
The automatic functions of this machine include PLC size controlling, with SS strip forming roller, Automatic spot welding, Automatic SS strip cutting (new).
...Read More
SMT-PX2000D-2Semi-Automatic Ring Bending Machine for SWG IR and OR
PLC size control,
with automatic cutter,
continuous fast processing.
...Read More
SMT-PX-2500CSemi-automatic Horizontal big size winder
SMT-PX-2500C is improved style based on SMT-PX-2500B, this style include PLC size control system and automatic spot welding; SS hoop forming parts for option.
Suitable for spiral wound gasket ID 300mm to 3200mm with or without inner ring.
Gasket thickness 4.5mm (also suitable for 3.2mm, 6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)

...Read More
SMT-PX1000D-2Vertical Automatic Ring Bending machine for SWG inner and outer ring
Bending Ring width:6mm--20mm, ring size:120-1000mm;
PLC touch screen setting length control, Automatic cutting.
...Read More
SMT-PX1200SMedium size semi-automatic winding machine
This machine was designed to winding gasket from 150 to 1200mm diameter spiral wound gasket.
Both manual model and automatic model available.
Can winding any shape of SWG.
...Read More
SMT-PX2000NAngling machine for SWG Inner ring
Milling the outer edge of spiral wound gasket inner ring into V shape
...Read More
PX1250Polishing Machine for SWG ring
This machine was designed to polish the surface of the spiral wound gasket inner and outer ring
...Read More
SMT-5213Kammprofile gasket machine
SMT-5213 style is used to make Kammprofile gasket in a very fast and convenient way.
Kammprofile pitch both 1.0 and 1.5mm available. HSS saw blades and Alloy blade in set for option.
...Read More
SMT-5218Blister packaging machine
SMT-5218 Blister packaging machine is used to vacuum package small gaskets in a convenient , clean and beautiful way.

Different flim width as per customs request.

...Read More
SMT-5210SS hoop slitting machine
SMT-5210 Slitting machine is used to slit spiral wound gasket hoop (Stainless steel strip) in flat shape. The widest SS before slitting is 120mm, thickness 0.1-0.3mm, slitting size 3.6 4.8 5.0 8.0 10.0MM width for option.
One machine can produce more than 1000kgs of strip per day.

...Read More

Automatic winding machine for spirial wound gasket(automatic spot welding) has been presented above, want more related products, please click the category below.
Category: Machines for gaskets
