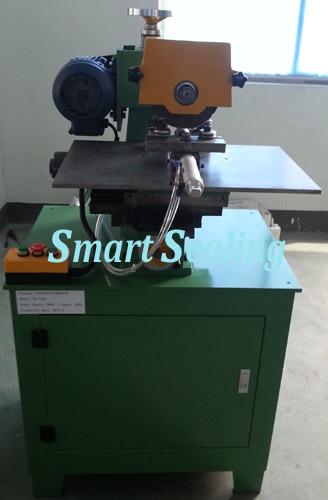

Polishing Machine for SWG ring

This machine was designed to polish the surface of the spiral wound gasket inner and outer ring

Enquiry Now

Polishing Machine for SWG ring Details

Specification as following:：
STYLE	PX 1250 Polishing Machine for SWG ring
Polising ring thickness	2-4mm
Maximum ring OD	3000mm
Minimum ring ID	120mm
Total power	2.2kw
Spindle motor power	1.1kw
Feed moter power	0.04kw
Power supply	380V/220V for option, 3 phases
linear speed	0-100 mm/s
Air compressor	0.6--0.8 Mpa
Measurement	840 X 960 X 1560MM
Machine net weight	250kg
