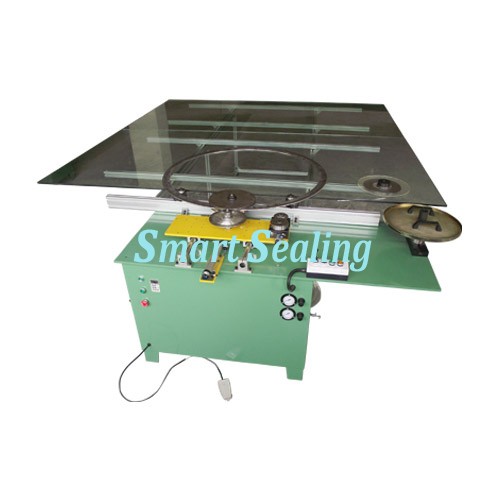

Semi-automatic Horizontal big size winder

SMT-PX-2500C is improved style based on SMT-PX-2500B, this style include PLC size control system and automatic spot welding; SS hoop forming parts for option.
Suitable for spiral wound gasket ID 300mm to 3200mm with or without inner ring.
Gasket thickness 4.5mm (also suitable for 3.2mm, 6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)

Enquiry Now

Semi-automatic Horizontal big size winder Details

SMT-PX-2500B Horizontal winding machine for big size SWG

Suitable for spiral wound gasket ID bigger than 300mm to 3200mm.

Suitable for SWG with or without inner ring.

Gasket thickness 4.5mm (also suitable for 3.2mm, 6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)

SMT-PX-2500B is Manual control winding size;

SMT-PX-2500C is improved style based on SMT-PX-2500B, this style include PLC size control system and automatic spot welding; SS hoop forming parts for option.

Specification as following:
STYLE	SMT-PX-2500B Manual winder	SMT-PX-2500C Semi-automatic Winder
Producing ability	SWG with or without IR	SWG with or without IR
SWG thickness	4.5mm (also suitable for 3.2mm, 6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD	2500mm or 3200 for optioin	2500mm or 3200 for optioin
Minimum gasket ID	300mm	300mm
Total power	2.2kw	8kw
Spindle motor power	0.75kw	0.75kw
welder power	/	6kw
Power supply	380V/220V as request	380V/220V as request
linear speed	0-800mm/s	0-800mm/s
Air compressor	0.6—0.8 MPA	0.6—0.8 MPA
Transducer	2.2G	2.2G
PLC	/	xinjie
Machine measurement	34002600980mm	34002600980mm
Machine net weight	500kg	550kg

SMT-PX500CNewest Model Automatic spiral wound gasket Winding machine
SMT-PX500C Automatic spiral wound gasket winding machine is our newest design, it has the best automatic function all over China.
The automatic functions of this machine include PLC size controlling, with SS strip forming roller, Automatic spot welding, Automatic SS strip cutting (new).
...Read More
SMT-PX2000D-2Semi-Automatic Ring Bending Machine for SWG IR and OR
PLC size control,
with automatic cutter,
continuous fast processing.
...Read More
SMT-PX-300CAutomatic winding machine for spirial wound gasket
This is our new design style automatic winding machine for SWG. Producing range diameter 25-500mm.
Both Manual and Automatic mode.
Can use both pre-formed SS strip in pancake or 20-25kgs spool of flat strip. Standard package including models for 1"-10" 150# SWG with or without inner ring.
...Read More
SMT-PX1000D-2Vertical Automatic Ring Bending machine for SWG inner and outer ring
Bending Ring width:6mm--20mm, ring size:120-1000mm;
PLC touch screen setting length control, Automatic cutting.
...Read More
SMT-PX1200SMedium size semi-automatic winding machine
This machine was designed to winding gasket from 150 to 1200mm diameter spiral wound gasket.
Both manual model and automatic model available.
Can winding any shape of SWG.
...Read More
SMT-PX2000NAngling machine for SWG Inner ring
Milling the outer edge of spiral wound gasket inner ring into V shape
...Read More
PX1250Polishing Machine for SWG ring
This machine was designed to polish the surface of the spiral wound gasket inner and outer ring
...Read More
SMT-5213Kammprofile gasket machine
SMT-5213 style is used to make Kammprofile gasket in a very fast and convenient way.
Kammprofile pitch both 1.0 and 1.5mm available. HSS saw blades and Alloy blade in set for option.
...Read More
SMT-5218Blister packaging machine
SMT-5218 Blister packaging machine is used to vacuum package small gaskets in a convenient , clean and beautiful way.

Different flim width as per customs request.

...Read More
SMT-5210SS hoop slitting machine
SMT-5210 Slitting machine is used to slit spiral wound gasket hoop (Stainless steel strip) in flat shape. The widest SS before slitting is 120mm, thickness 0.1-0.3mm, slitting size 3.6 4.8 5.0 8.0 10.0MM width for option.
One machine can produce more than 1000kgs of strip per day.

...Read More
