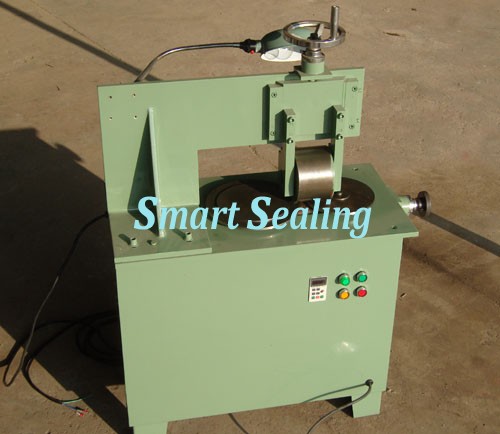

Eyelet machine

This machine is used to eyelet the reinforced gasket inner and outer diameter with SS strip. Need to use with SMT-5216 SS strip moulding machine.
Working range: Diameter 60mm to 4000mm. Width: ≤95mm, Thickness: 2-8mm

Enquiry Now

Eyelet machine Details

Specification as following:
STYLE	SMT-5217 Eyelet machine
Gasket thickness	2-8mm (Standard machine package include one set model for 3mm, other size need extra order0
Gasket width	≤95mm
Maximum gasket OD	4000mm
Minimum gasket ID	60mm
Total power	0.75kw
Spindle motor power	0.4kw
Power supply	380V/220V as request
Transducer	0.75G
linear speed	0---120mm/s
Machine measurement	9504501300mm
Machine net weight	220 kg
