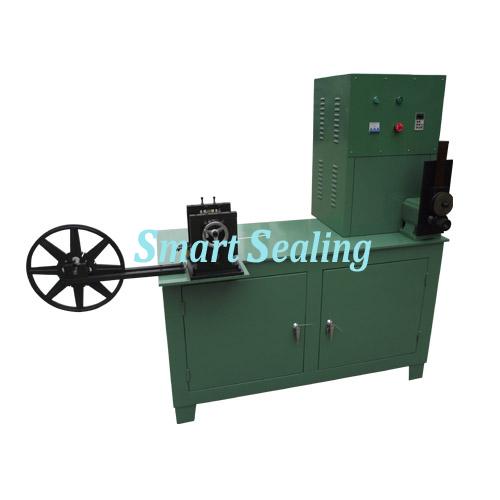

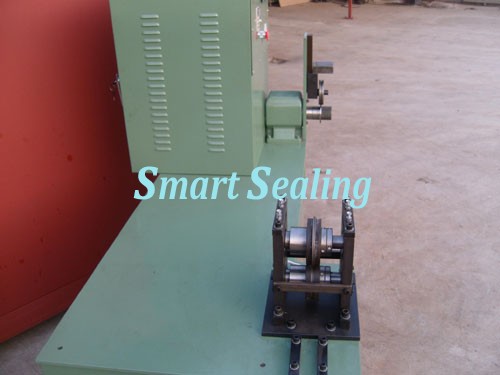

Pre-shaping machine for SWG SS strip

This machine is used to pre-shape the flat spiral wound gasket SS strip (hoop) to V or W shape before winding them. Preshape SS thickness 0.1-0.3mm, SS width 2.5-7.2mm.

Enquiry Now

Pre-shaping machine for SWG SS strip Details

This machine is used to pre-shape the flat spiral wound gasket SS strip (hoop) to V or W shape before winding them. Preshape SS thickness 0.1-0.3mm, SS width 2.5-7.2mm.

Specification as following:
STYLE	SMT-529 Pre-shaping machine for SWG SS strip
Preshaping SS thickness	0.1--0.3mm
Pre-shaping SS width	2.5--7.2mm (Standard machine package include on size of blade, other size for option: 2.5V 3.2V 4.5V 6.4V 7.2V 2.5W 3.2W 4.5W 6.4W 7.2W)
Total power	1.5kw
Spindle motor power	0.75kw
Transducer	2.2G
Power supply	380V/220V as request
linear speed	0--12m/s
Machine measurement	18008201600mm
Machine net weight	300kg
