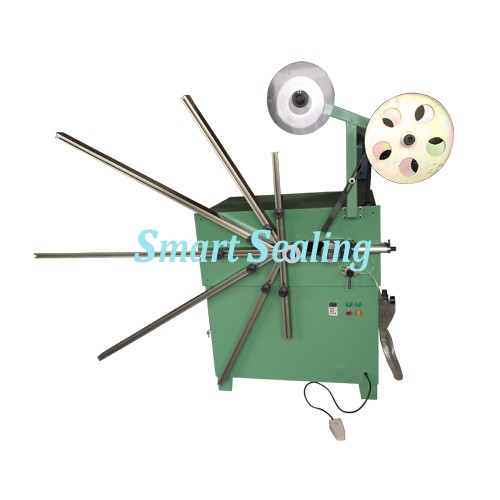

Manual Vertical big size winding machine for SWG

SMT-PX-1200 Vertical big size winding machine is very easy to use.
Suitable for SWG with or without inner ring, diameter from 200mm to 1600mm;
Thickness 4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)

Enquiry Now

Manual Vertical big size winding machine for SWG Details

SMT-PX-1200 Vertical big size winding machine is very easy to use.

Suitable for SWG with or without inner ring, diameter from 200mm to 1600mm;

Thickness 4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)

Specification as following:：

STYLE	SMT-PX-1200 Vertical big size winding machine
Producing ability	SWG with or without inner ring
SWG thickness	4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding)
Maximum gasket OD	1600mm
Minimum gasket ID	200mm
Gasket OD tolerance	±0.8mm
Total power	2.2kw
Spindle motor power	1.5kw
Transducer	2.2G
Power supply	380V/220V as request
linear speed	0-800mm/s
Air compressor	0.6—0.8 MPA
Machine measurement	22008501800mm
Machine net weight	220 kg
