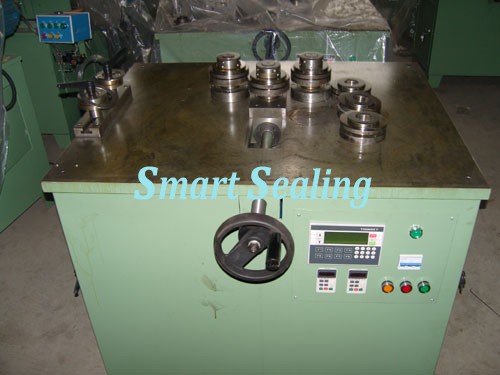

Ring rolling machine New style

SMT-PX-2000C is a new design rolling machine for SWG IR and OR. It has 3 driving rings. and the PLC size control system make the ring diameter tolerance very good. It can ring roll any size outer ring or inner ring by single run. Producing range is diamter 180-4000mm. Thickness 2mm, 3mm and 4mm. Ring width: 6-60mm.
Suitable for volume-produce.

Enquiry Now

Ring rolling machine New style Details

Suitable for volume-produce.

Specification as following:
STYLE	SMT-PX-2000C Rolling machine for SWG IR and OR
Producing Ring thickness	2mm, 3mm, 4mm
Producing Ring width	6mm--60mm
Maximum gasket OD	4000mm
Minimum gasket ID	180mm
Total power	5kw
Spindle motor power	0.75kw*3
Power supply	380V/220V as request
linear speed	0-200mm/s
PLC	xinjie
Transducer	2.2G
Machine measurement	10509001000mm
Machine net weight	380kg
