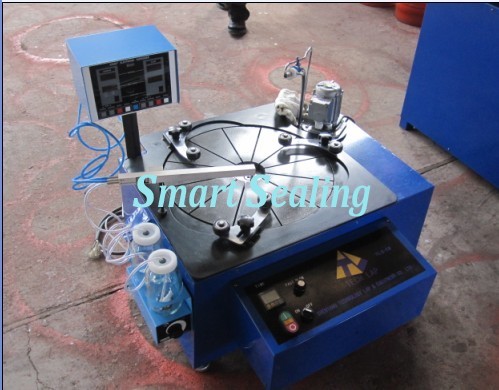

24'' plate Single Sided Lapping Machine

 Machining precision:
Flatness: 2um/100mm
Parallelism: 1um/100mm
Roughness: Ra=0.2 (lapping) Ra= 0.01 (polishing)

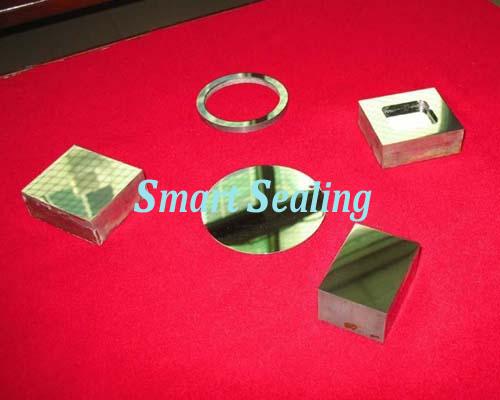

Finish can achieve mirror face

Standard machine package including :

1 serrated lapping or polishing plate, 3 serrated conditioning rings and 3 pressure weights.

Following equipment need extra order(for option):
1) custom-made work pc thickness control system
2) Auto Diamond Paste Dispenser
3) Monochromatic Light and optical flat
4) Supply Diamond Paste on request.

Main applications:
Auto industry, diesel engine, aviation industry, pump, compressor, valve industry, tooling industry, medical equipment, mechanical sealed industry, optoelectronic industry, semi-conductor industry, etc.
It can lap or polish piezoelectricity crystal, semi-conductor material (silicon wafter, germanium wafe, gallium arsenide wafer, indium phosphor, etc), optical glass, electronic ceramics, base plate material magnetic material for LCD, mechanical sealed materials, zinc oxide, arrester and many other metal or nonmetal materials.
